SMAD-X Studio¶

SMAD-X Studio is the trainer's tool: a second executable, shipped in the same archive as SMAD-X, that creates labs, checks them and produces the trainer sheet. It does, with a window, what the how-to describes by hand.

Studio does not replace SMAD-X: the domain is prepared and fixed in SMAD-X, the lab is shaped in Studio, the learner does it in SMAD-X and hands in a submission, which Studio grades with the rest of the class.

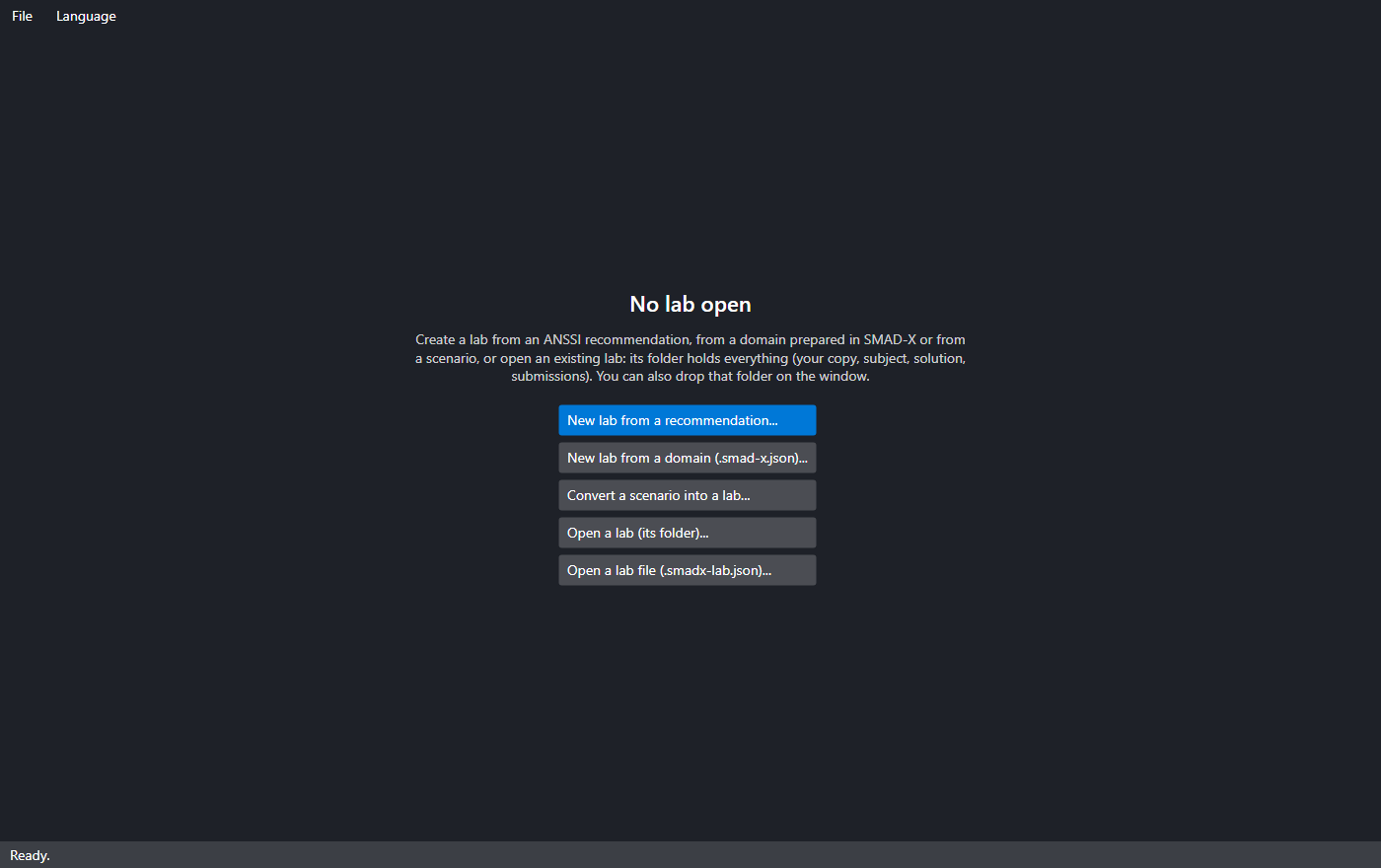

Three ways to start¶

Open a lab (its folder)... (Ctrl+O) reopens a lab by its folder, or by one of its role folders: Studio finds there everything the creation laid out (your copy, the subject, the fixed domain, the notes) and grades the submissions of 3-submissions straight away. Dropping that folder on the Studio window does the same, and the start screen lists the recent labs, reopened in one click. Open a lab file (.smadx-lab.json)... resumes a lab saved on its own, with its notes.

As soon as it is created, Studio asks where to keep the lab, suggesting the folder of the previous one, and creates its folder there, laid out by role (see The files): your copy, the subject to hand out and the trainer sheet are already written. Each step then writes in its place, without asking: the subject in 2-to-hand-out, the sheet in 1-trainer, the submissions you add in 3-submissions, the grades and reports in 4-results. If you cancel the folder choice, the lab stays open without being saved: Save will ask where to keep it.

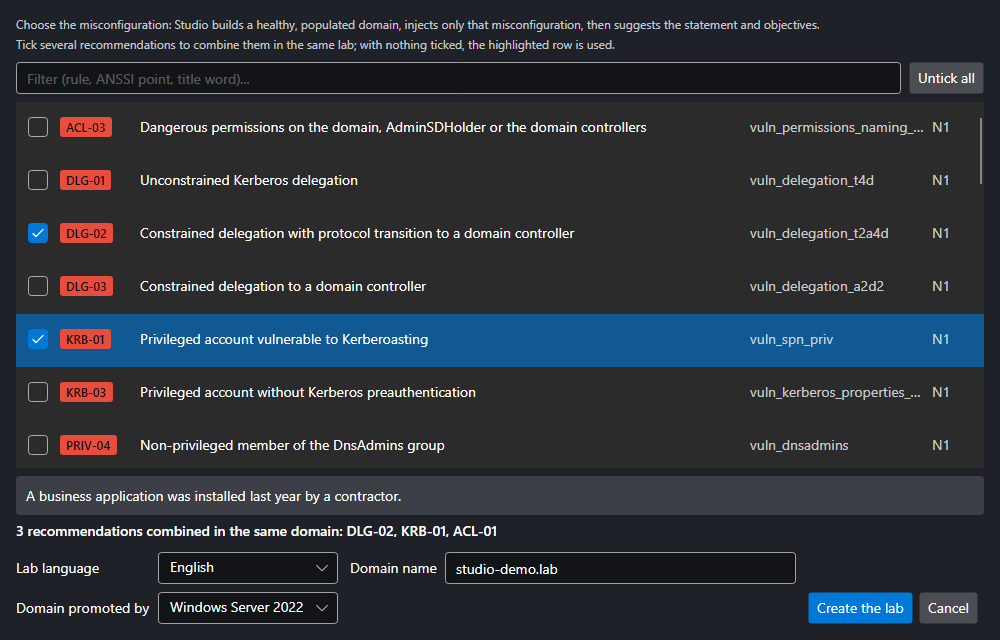

From a recommendation¶

Each audit rule has its recipe, with the matching ANSSI control point and its level (N1 to N4). The list can be filtered by rule id, ANSSI point or title word. Choose the lab language, the Windows Server version that promoted the domain (2019, 2022 or 2025) and the domain name: Studio builds a realistic directory (departments, users, workstations), checks that it is healthy, then injects only the chosen misconfiguration. This starting domain comes from a new AD that Studio hardens: built-in accounts fixed, a 12-character password policy with lockout, a join quota of 0, delegation groups for the service desk and IT.

Combining several recommendations¶

Tick several rows to put their misconfigurations in the same domain: the lab gets one objective per targeted rule, the objectives suggested by the audit and the attack paths, and the guards of every recipe. Level and duration grow with the number of misconfigurations, and the trainer notes have one section per rule. With nothing ticked, the highlighted row is used; Untick all goes back to a single recommendation.

Some recipes do not go together: two recipes that create the same object (KRB-01 and KRB-02 both create the business application's service account), or a recipe that cancels another one's misconfiguration. Studio explains it under the list and disables Create the lab while the combination is not possible.

The statement it writes stays general ("check compliance before the yearly audit"): it names neither the rule nor the object to fix. Enrich it with your organisation's context.

The fixed domain¶

Studio also produces the fixed domain: the starting domain with the expected fix of each chosen recommendation applied, the one the rule sheet describes, without deleting anything. Validation uses it to check that it gets all the objectives' points, and the trainer sheet lists what it changes. It is saved with the lab, in 1-trainer/fixed-domain.smad-x.json (see The files): open it in SMAD-X to show the fix, but do not give it to learners.

The tabs¶

Lab¶

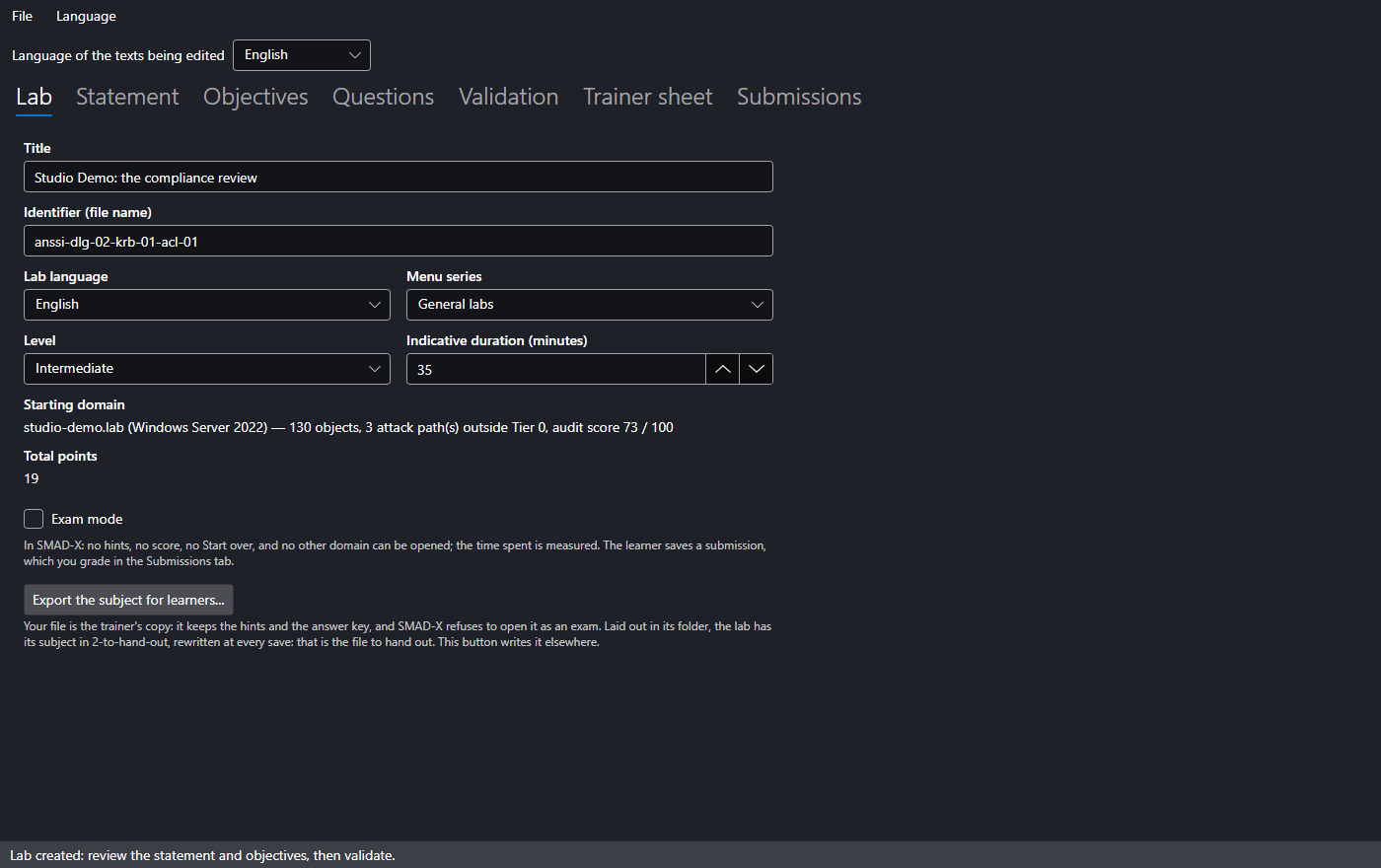

Title, identifier (the file name), language, menu series (general labs or attack paths), level and duration. The starting domain summary gives the Windows Server version that promoted it, the number of objects, the attack paths outside Tier 0 and the audit score.

A lab is either bilingual or exists in one language only. The Language of the texts being edited list, at the top of the window, chooses which texts you edit.

Exam mode: in SMAD-X, the lab has no hints, no score and no "Start over", and no other domain can be opened; the time spent is measured. The learner saves a submission and hands it in. Two settings complete exam mode:

• Allow "Check": the learner sees which objectives are met, with no score and no explanation;
• Tools closed during the exam: security audit, the "How to fix" section of the sheets, attack paths, before / after comparison. All are open by default: they help analyse, but they also show what grading checks.

Your copy and the subject: the file Studio saves in 1-trainer is your copy, with the hints and the answer key of the questions; submissions are graded with it. It is not handed out: for an exam, SMAD-X refuses to open it. At every save, Studio also writes the subject, under the same name, in 2-to-hand-out: without the answer key and, for an exam, without the hints. That is the file to hand out. Export the subject for learners... (File menu, or the button in the Lab tab) saves the lab and rewrites the subject in 2-to-hand-out, without asking: the subject and the copy that will grade the submissions stay identical. For a lab saved on its own by an earlier version, it asks where to write the subject, and refuses to write it over your copy.

Closing Studio with an unsaved lab or notes asks you to save.

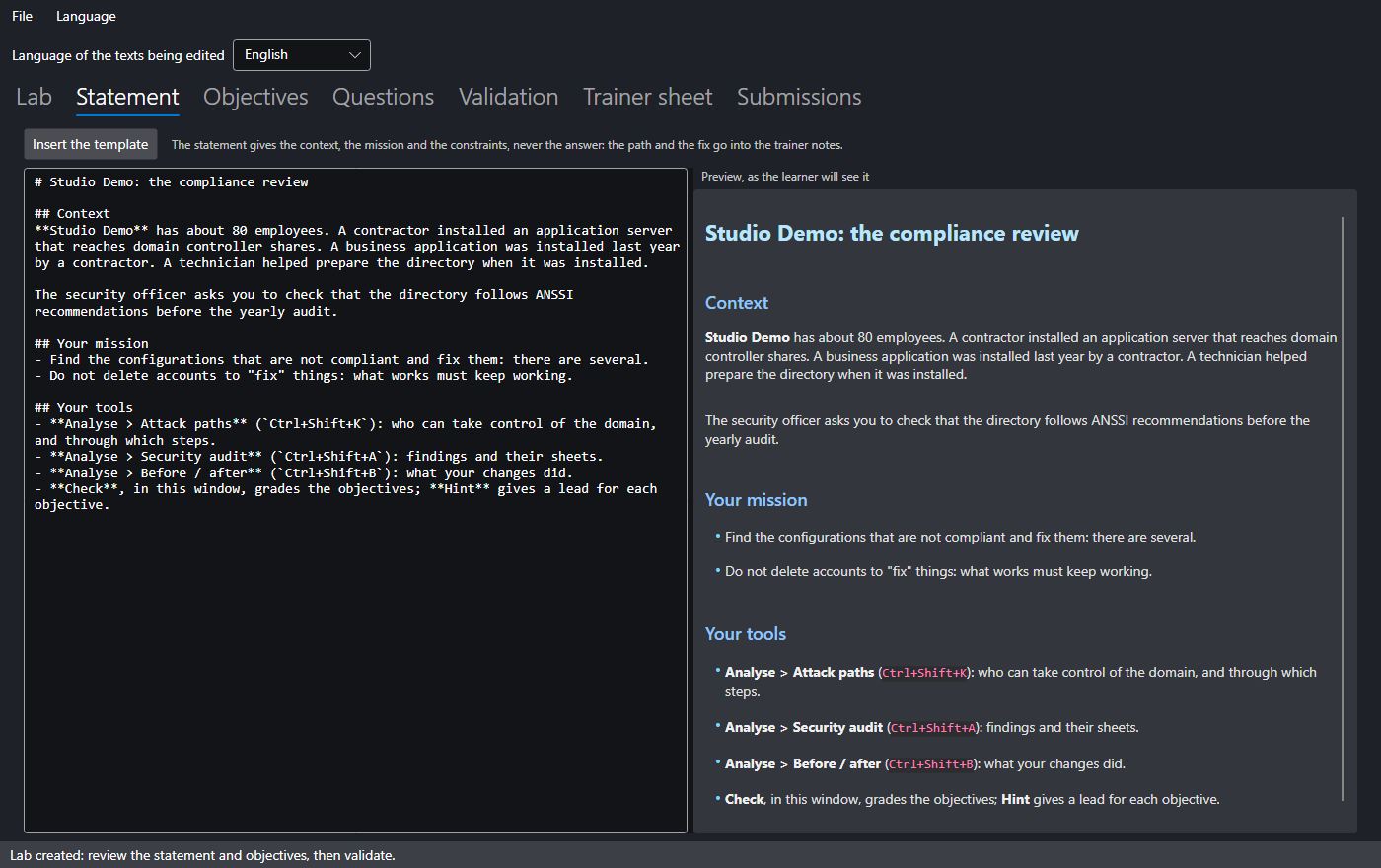

Statement¶

The statement is written in Markdown, with a preview as the learner will see it. Insert the template lays out the Context / Your mission / Your tools outline.

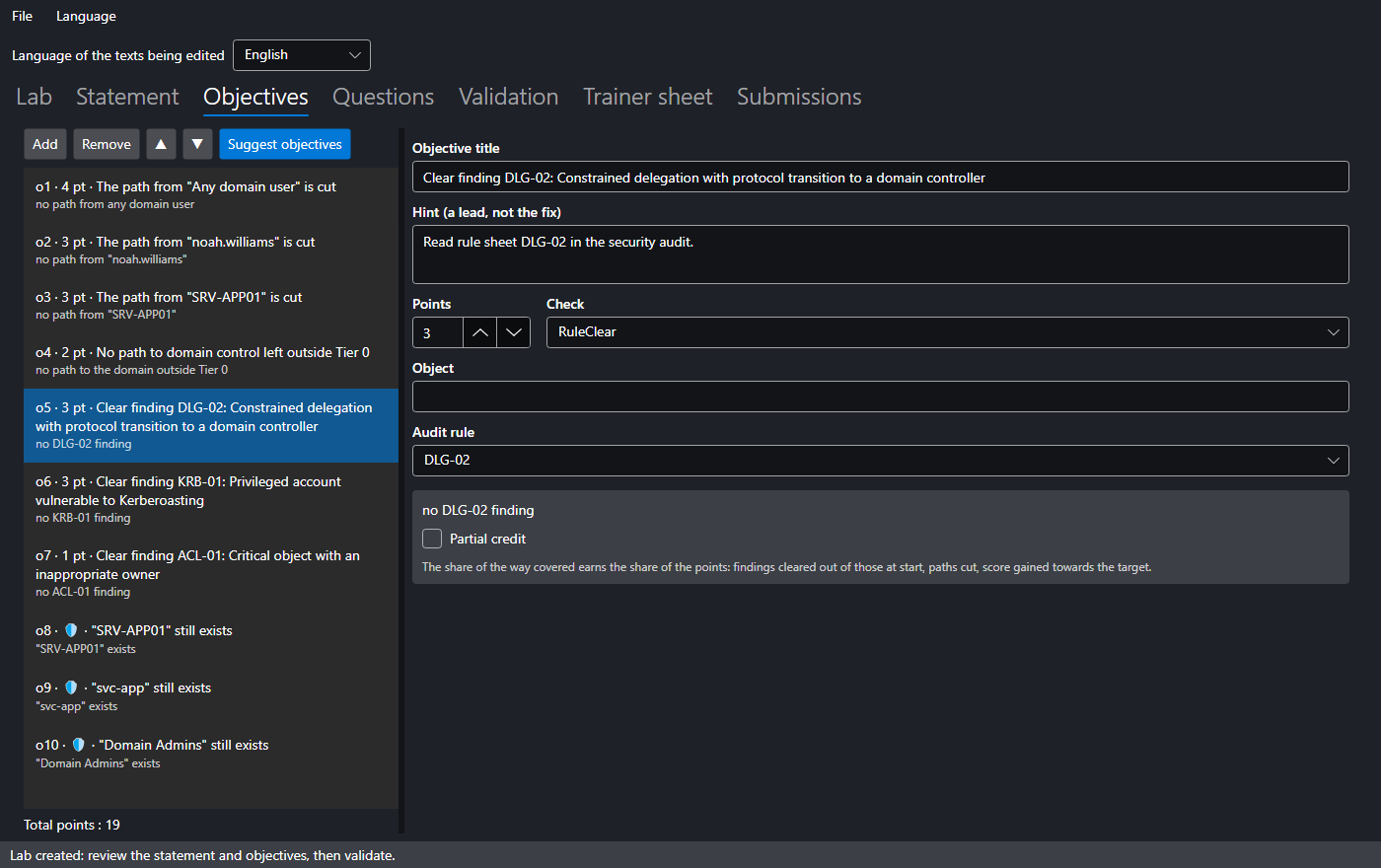

Objectives¶

On the left, the objectives and the total points; on the right, the selected objective: title, hint, points and check. Only the fields the chosen check needs are shown, and object names autocomplete from the starting domain. The available checks are described in the how-to.

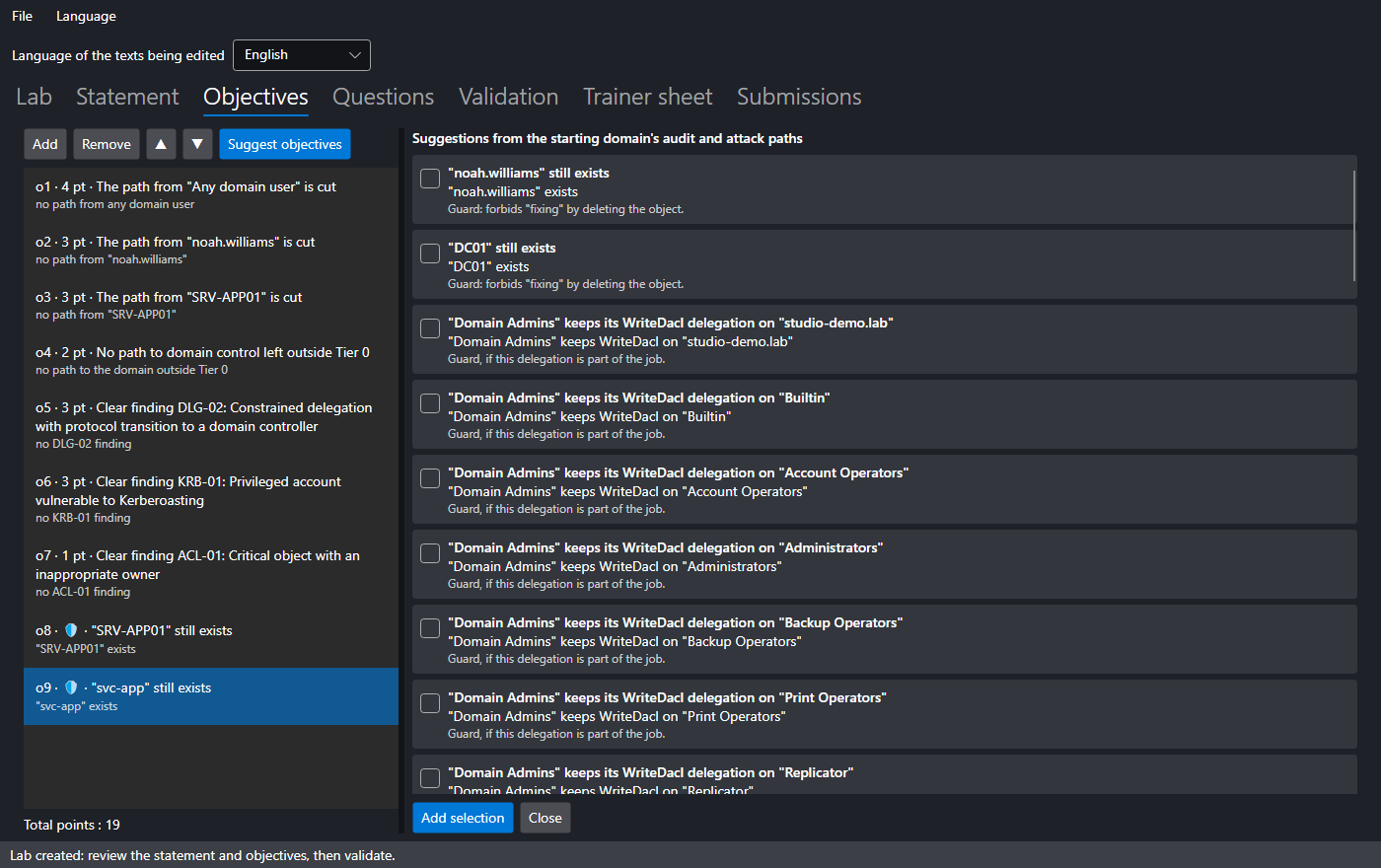

Suggest objectives analyses the starting domain and suggests what the lab does not contain yet:

• one objective per attack path outside Tier 0, and "no path left to domain control";
• one objective per failed audit rule;
• guards (Guard box, 🛡 in the list), already met at start, that refuse a brute-force solution (deleting the account instead of fixing it). A guard earns no points; broken, it cancels the objectives that concerned the protected object at start: its audit finding, the attack paths that went through it, the checks that name it.

Recommended suggestions are ticked; Add selection adds them to the list.

Partial credit (◐ in the list): for a check that can be counted, the objective earns the share of the way covered since the start. It applies to a rule's findings over the whole domain (3 accounts fixed out of 4: 75 % of the points), to the findings of a severity, to the audit score (the share of the way to the target score) and to the attack paths outside Tier 0 or from any domain user. A broken guard also cancels the share earned.

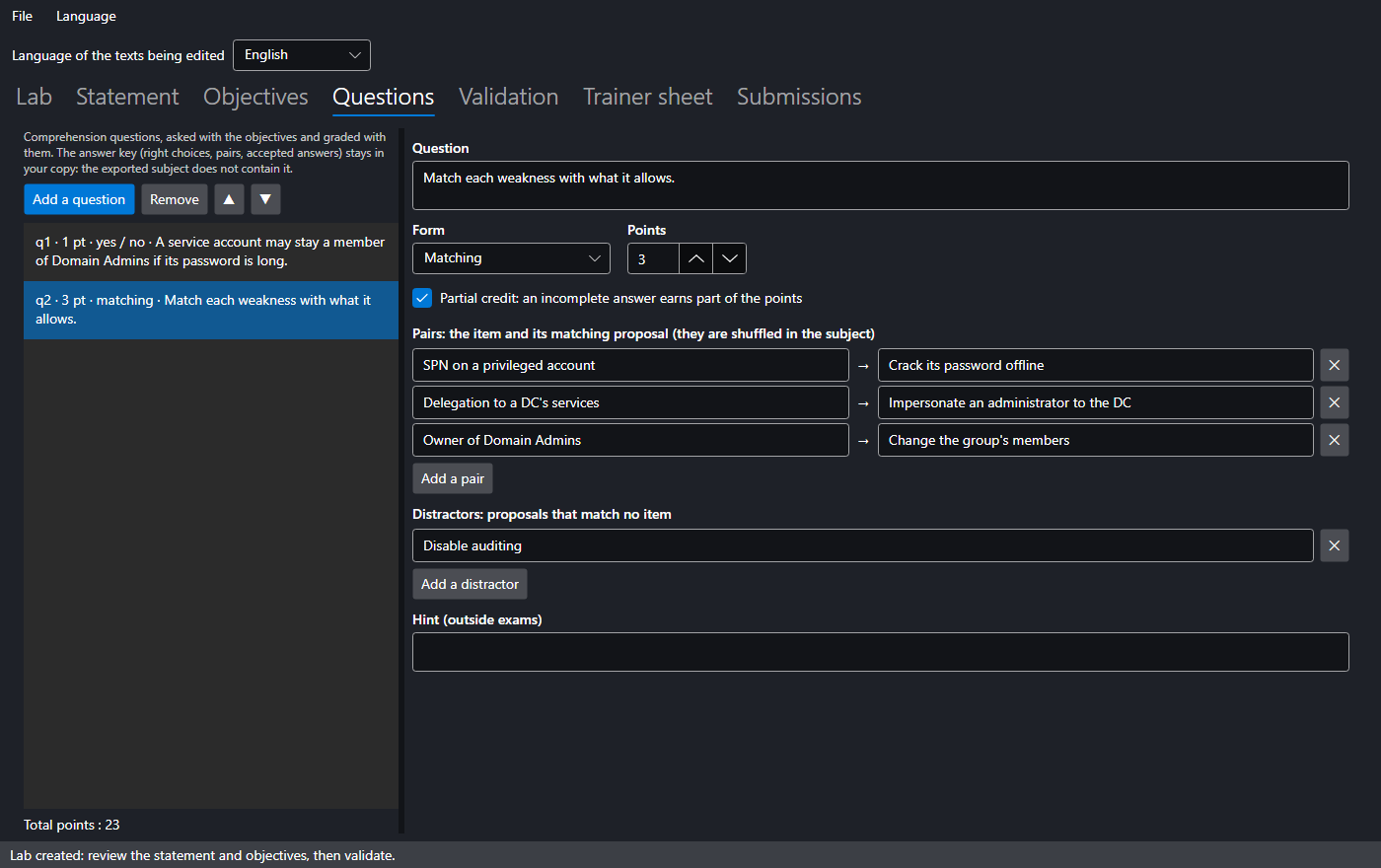

Questions¶

Comprehension questions, asked in the lab window with the objectives and graded with them. Add a question, then choose its form:

A written answer is recognised regardless of case, accents, extra spaces and final punctuation. Any other answer, or a question with no accepted answer, is graded by hand in the Submissions tab.

The answer key stays in your copy. The exported subject holds neither the right choices, nor the pairs, nor the accepted answers, and a matching question's proposals are shuffled in it. In an exam, SMAD-X saves the answers in the submission without grading them; outside exams, the lab handed out holds the answer key, and Check grades the questions too (validation points it out).

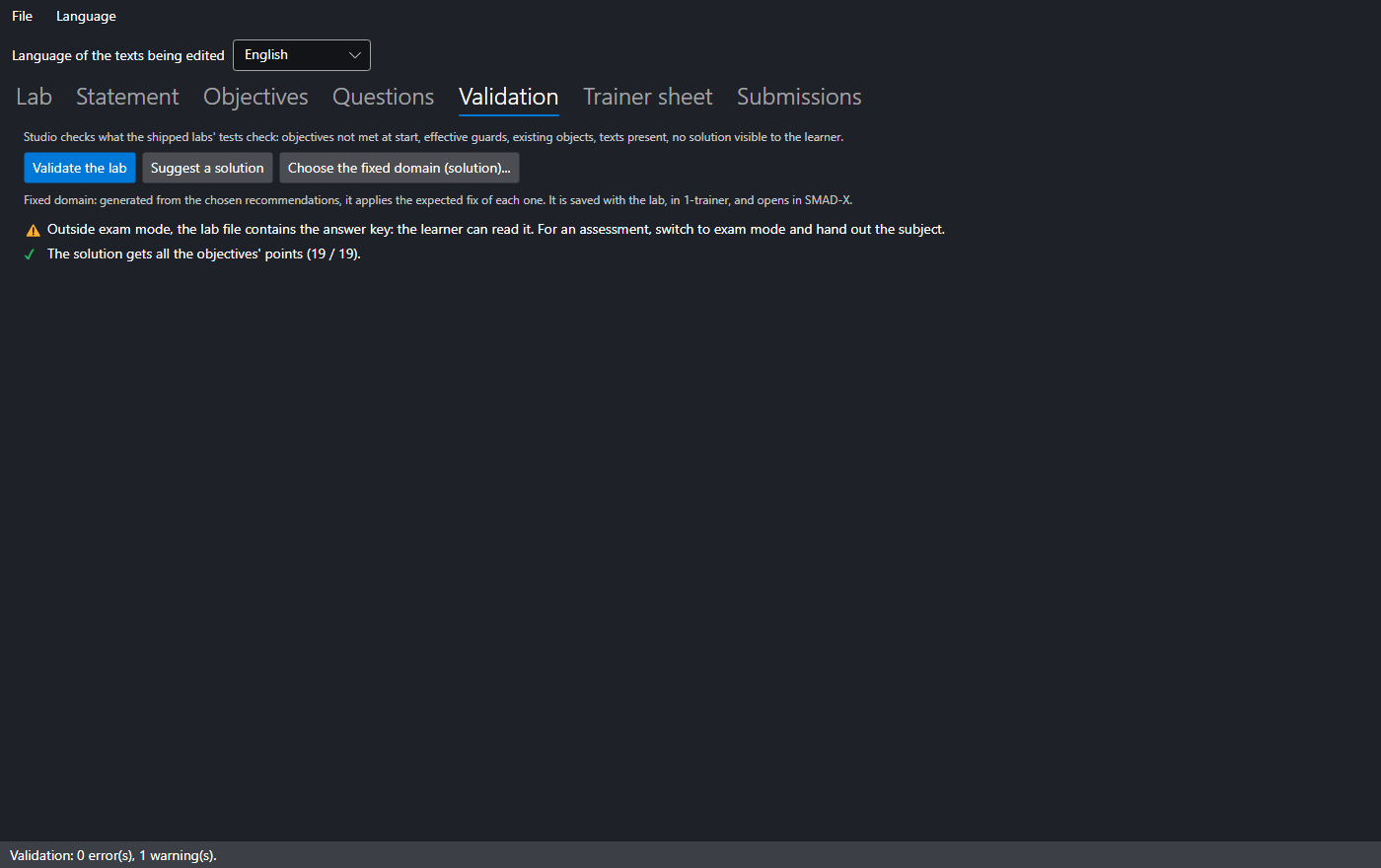

Validation¶

Validate the lab runs the checks of the shipped labs' tests:

• texts present in every language of the lab, unique ids, positive points;
• no main objective met at start, every guard met, each guard actually effective, and the shortcut it refuses earns no more than half the points;
• cited objects and rules exist in the starting domain;
• no solution visible to the learner, neither in the statement nor in the domain descriptions;
• complete questions: texts, at least two choices, a right answer (exactly one for single choice or yes / no), each matching item linked to a proposal.

The solution¶

Validation also checks the solution, the fixed domain: it must get all the objectives' points. There are three ways to get it:

In all three cases, the fixed domain is kept with the lab, in 1-trainer, and the trainer sheet lists what it changes. What a suggested solution does not reach shows in the validation ("The solution fails"). To finish it: save, open 1-trainer/fixed-domain.smad-x.json in SMAD-X, do the rest, save, then Choose the fixed domain (solution)....

Trainer sheet¶

The trainer notes (the solution, things to watch for) and the trainer sheet preview: objectives, guards, questions and their answer key, attack paths and audit of the starting domain, what the fixed domain changes, then the notes. Export trainer sheet... saves the lab and writes the sheet as Markdown in 1-trainer.

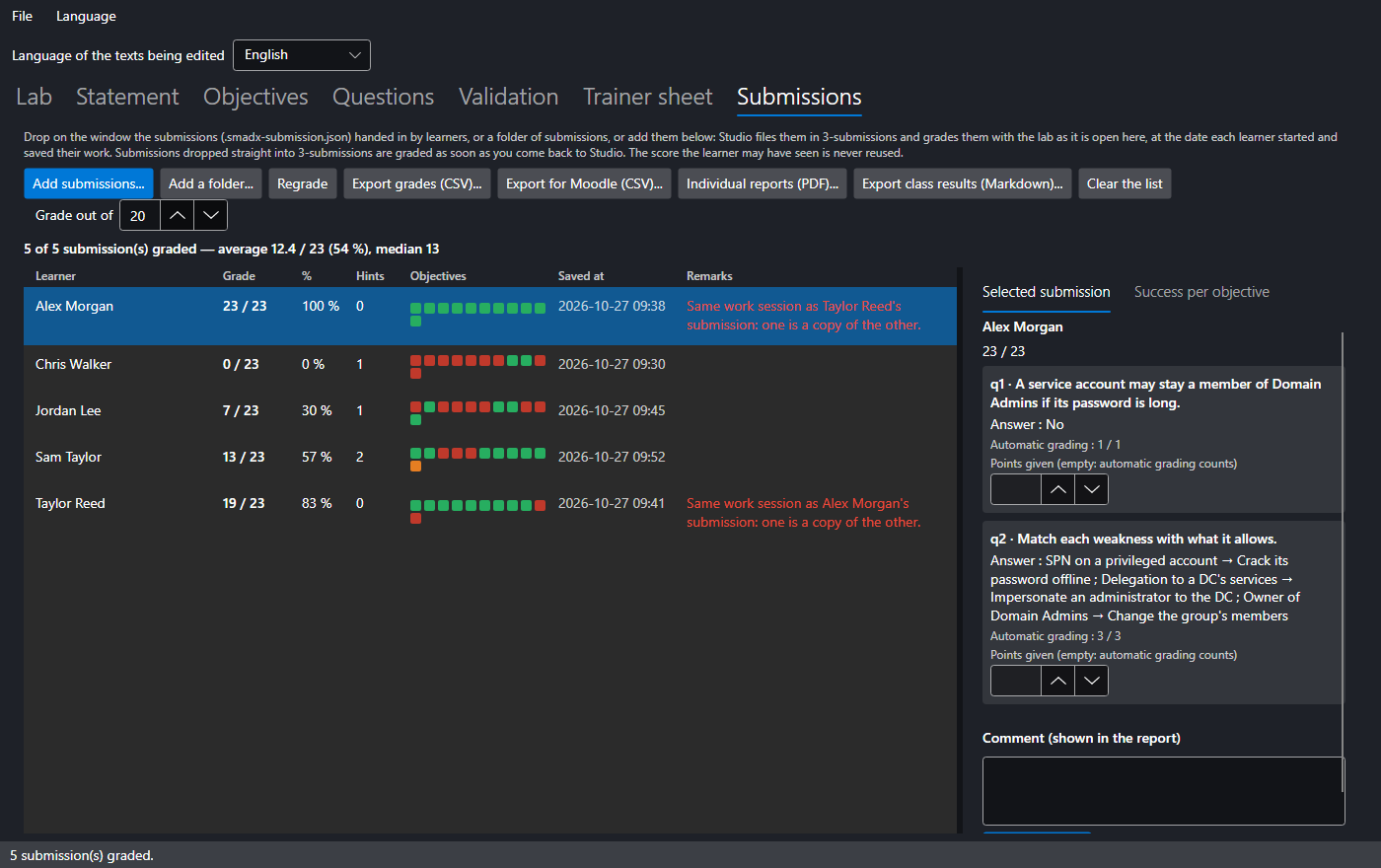

Grading a class¶

Each learner saves their work in SMAD-X with Save my submission: a .smadx-submission.json file holding the lab they received, their domain, their answers to the questions and the hints viewed. The simplest: with the lab open, drop the submissions on the Studio window, or a folder of submissions (a USB stick, an assignment downloaded from the school platform): Studio files them in 3-submissions, with the grades by hand that come with them, and grades them straight away. A submission already filed is not copied again; another file of the same name gets a number. You can also put the submissions into 3-submissions yourself, from the file explorer: they are graded when the lab opens, or as soon as you come back to Studio if it is already open. Opened by its folder, the lab is always your copy (1-trainer), not the subject, which has no answer key. In the Submissions tab, the same submissions can also be added with buttons:

• Add submissions...: pick one or several submissions at once;
• Add a folder...: every submission in the folder and its subfolders, filed with their subfolders (a Moodle download has one folder per learner, and the submissions may have the same name there).

Studio grades each submission with your copy of the lab, as it is open: the starting domain is prepared again at the date the learner started, and the check runs at the date of the submission. The score the learner may have seen is never reused. After changing objectives or points, Regrade grades everything again.

Each row gives the grade (to the hundredth with partial credit; followed by * when answers remain to be graded), the percentage, the number of hints viewed, the time spent, one dot per objective then per question (green met, orange in part, red not met, grey to grade; hover for details) and the remarks:

Red remarks need your attention; the grade stays displayed. Two identical solutions, each done on its own, are not reported: what gives a copy away is not the solution, it is the work session. SMAD-X draws it at random when the lab opens, derives from it the internal identifiers of every object in the learner's domain, and seals each submission with a SHA-256 fingerprint of all its content.

Grading by hand and commenting¶

Select a submission: the Selected submission panel shows each answer, the automatic grading and a Points given field. Left empty, the automatic grading counts; filled in, it replaces it, for instance for a written answer Studio did not recognise. The comment appears in the learner's report. Save the grade writes it all beside the submission, in <submission>.smadx-marks.json: the sealed submission itself is never changed. If the learner hands in a new submission with another answer, the grade given by hand no longer applies.

Exporting the grades¶

The Success per objective tab shows what the class understood and what to go over again, objective by objective and question by question. The exports use the Grade out of scale (20 by default) and are written, without asking anything, in the lab folder's 4-results folder:

In SMAD-X, the learner can enter an ID (their number or address) beside their name: the exports use it.

The files¶

Studio lays each new lab out in a folder named after it, created in the chosen folder (or in the chosen folder itself, if it is empty; a lab of the same name is never overwritten: the new folder gets a number), with one subfolder per role. File > Save to a folder... moves it elsewhere. Folders and files have English or French names, depending on the interface language when the lab folder is created:

iam-review/
├── README.md                the role of each folder
├── 1-trainer/               keep it to yourself
│   ├── iam-review.smadx-lab.json   your copy: statement, starting domain, objectives, questions, hints and answer key
│   ├── trainer-notes.md            the trainer notes (the solution)
│   ├── fixed-domain.smad-x.json    the fixed domain, for a lab created from recommendations
│   └── trainer-sheet.md            the trainer sheet
├── 2-to-hand-out/
│   └── iam-review.smadx-lab.json   the subject: the only file to give learners
├── 3-submissions/           the submissions handed in (<id>_<name>.smadx-submission.json)
│                            and, beside each one, your grades by hand (<id>_<name>.smadx-marks.json)
└── 4-results/               grades.csv, grades-moodle.csv, class-results.md, reports/ (one PDF per learner)

At every Save, Studio rewrites your copy, the notes, the fixed domain, the sheet, the subject and the README. Your copy and the subject have the same name: the folder tells which one to hand out. The notes and the fixed domain are never written into the lab, and the subject has no answer key: handing out 2-to-hand-out does not reveal the solution.

Change the lab ID (Lab tab): at the next save, your copy and the subject take the new name, and so does the folder if it had the old one. Do it before handing out the subject: a submission carries the ID of the lab it was made from, and Studio refuses to grade it with another one. File > Open the lab folder (or the button beside its path) opens it in the file explorer.

A lab saved on its own by an earlier version still opens, with its notes beside it (<id>.smadx-lab.notes.md); Save to a folder... lays it out by role.

Command line¶

Studio also produces labs in batches and grades a class, without a window:

SMAD-X.Studio list-recipes --lang en

SMAD-X.Studio recipe KRB-01 DLG-02 --lang en --domain training.lab --out labs

SMAD-X.Studio recipe KRB-01 DLG-02 ACL-01 --combine --lang en --out labs

SMAD-X.Studio recipe all --lang fr --out exercices

SMAD-X.Studio convert scenarios --lang en --out labs

SMAD-X.Studio validate labs --solution fixed.smad-x.json

SMAD-X.Studio grade labs/anssi-krb-01 --lang en

SMAD-X.Studio grade labs/anssi-krb-01/1-trainer/anssi-krb-01.smadx-lab.json submissions-group-a submissions-group-b --lang en --csv grades.csv --moodle moodle.csv --reports reports --report results.md

Each lab written is validated straight away. The exit code is 0 when all is well, 1 when a lab has errors (it is still written, to be fixed in Studio), the recipes cannot be combined or a submission needs attention (not graded, changed or copied), and 2 for a wrong command.
